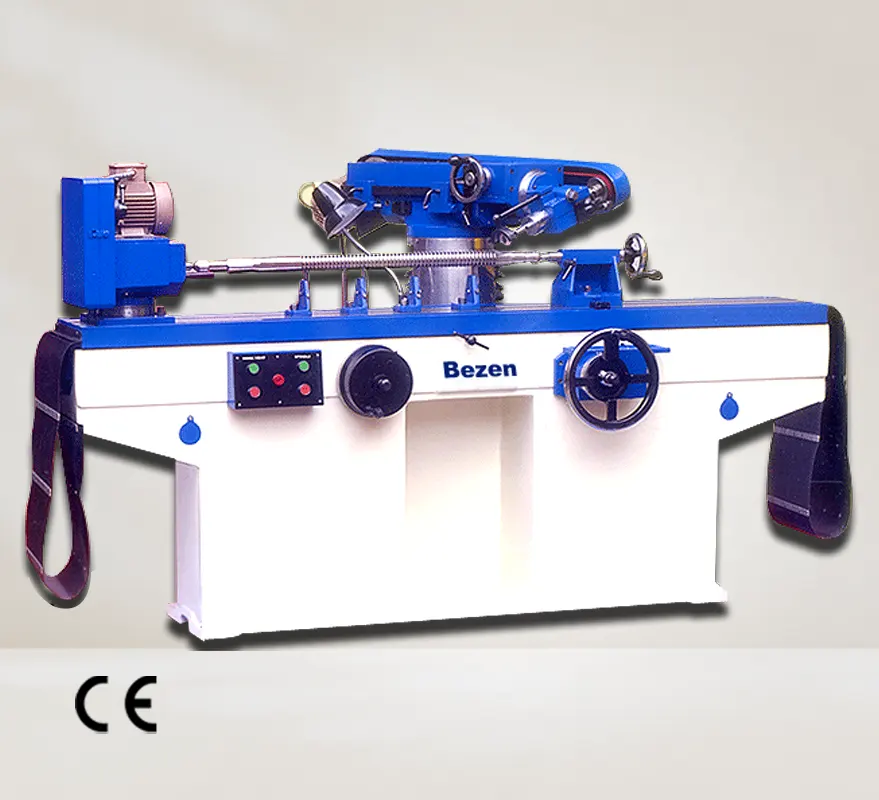

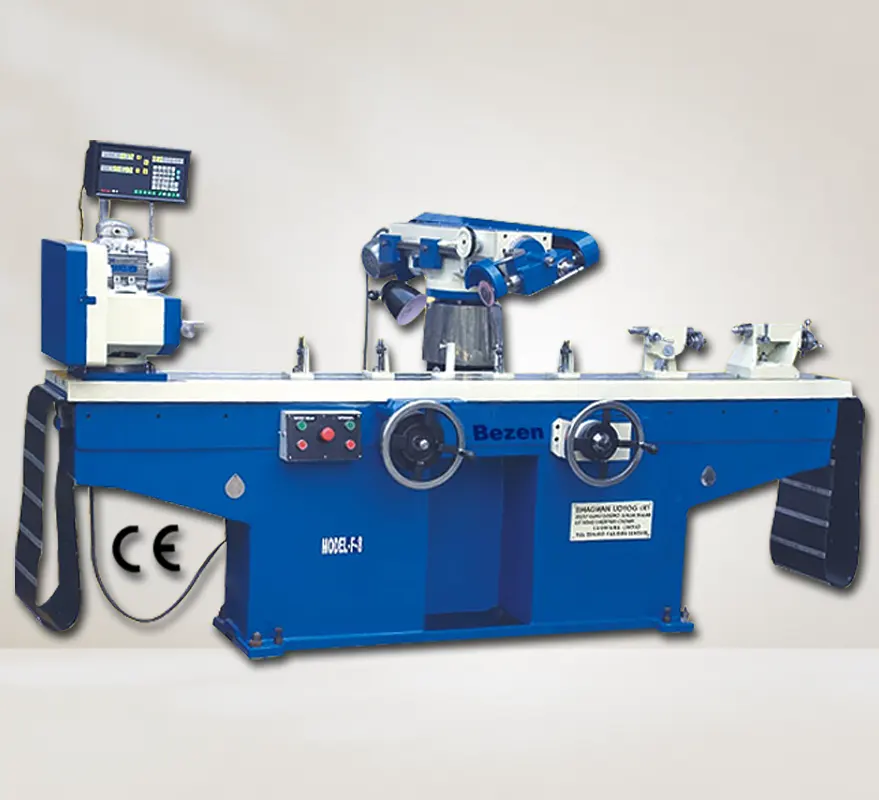

Broach Sharpening Machine

Our Products Range

Technical Specifications of Broach Sharpening Machine

Model	F-2	F-4	F-6	F-8
Length	800	1500	1800	2000
Max. Sharpening Length	650	1300	1600	1800
Height of Centre	140	155	155	155
Max. Diameter of Broach	80	160	160	160
Max. Width of Flat Broach	140	160	160	160
Max. Height of Flat Broach top from Magnet Base	75	100	100	100
Table Surface Dimension	1270 x 280	2182 x 330	2430 x 330	2730 x 330
No. of T-Slot & Size	1-12	1-12	1-12	1-12
HEAD STOCK
Spindle TAper	MT-3	MT-4	MT-4	MT-4
No. of Speed & RPM	63,98,140	30,45,60,80	30,45,60,80	30,45,60,80
TAIL STOCK
Quill Taper	MT-3	MT-4	MT-4	MT-4
Quill Travel	30 mm	40 mm	40 mm	40 mm
LONGITUDINAL TRAVEL
One Revolution Of Hand Wheel
Slow & 1 DIV = 0.2	4.6	4.6	4.6	4.6
Rapid &1 DIV = 2.0	46.0	46.0	46.0	46.0
VERTICAL TRAVEL
One Revolution Of Hand Wheel
Slow & 1 DIV = 0.2	2.0	2.0	2.0	2.0
Rapid &1 DIV = 2.0	4.0	4.0	4.0	4.0
Vertical Travel Spindle to Table Top	400	500	500	500
GRINDING SLIDE SWIVEL AROUND
The Horizontal Axis	360°	360°	360°	360°
Spindle Vertical Axis	0-90 °	0-90 °	0-90 °	0-90 °
MOVEMENT OF GRINDING SLIDES
Max. Cross Movement of Grinding Slide	180	210	210	210
Max. Vertical Movement of Spindle to Table Top	300	400	400	400
Max. Height to Table Top to Cup Stone	100	100	100	100
ELECTRICALS
Grinding Spindle Motor	1.0 HP 1425RPM	1.0 HP 1425RPM	1.0 HP 1425RPM	1.0 HP 1425RPM
Work Head Motor	0.5 HP 1440RPM	0.75 HP 960 RPM	0.75 HP 960 RPM	0.75 HP 960 RPM
GRINDING WHEEL
Min. & Max. Diameter Of Grinding Wheel	50-150	50-150	50-150	50-150
Number Of Grinding Wheel Speed Of Rpm	2800, 5000, 7500	2800, 5000, 7500	2800, 5000, 7500	2800, 5000, 7500
Space Occupied (L x W x H)	230x120x160	370x120x160	430x120x160	490x120x160
Colour	Tata Blue & FR White	Tata Blue & FR White	Tata Blue & FR White	Tata Blue & FR White
