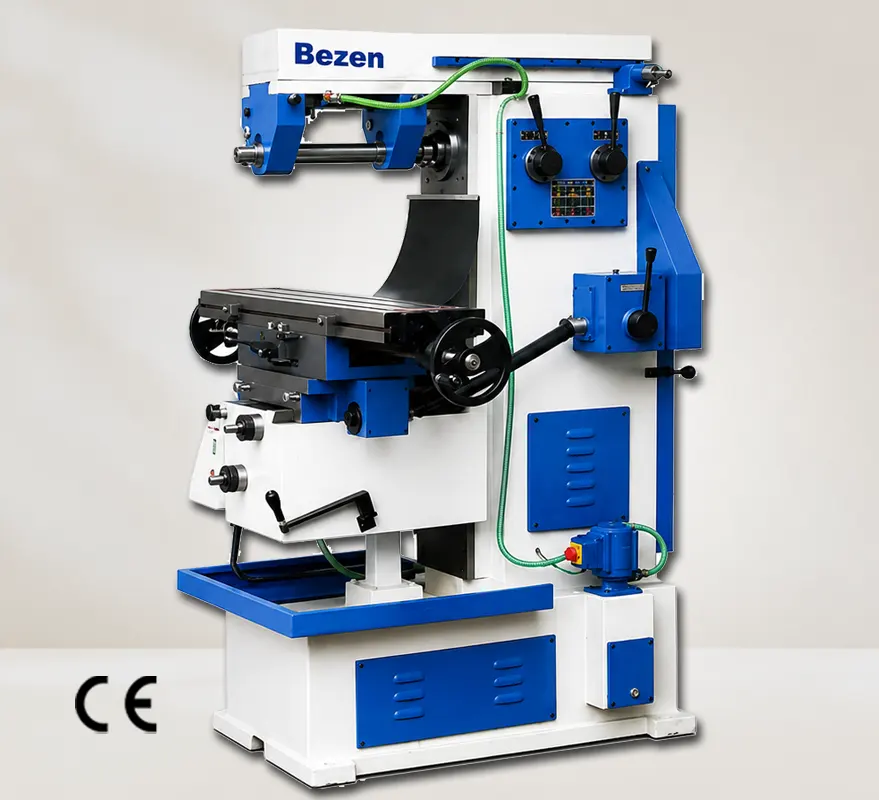

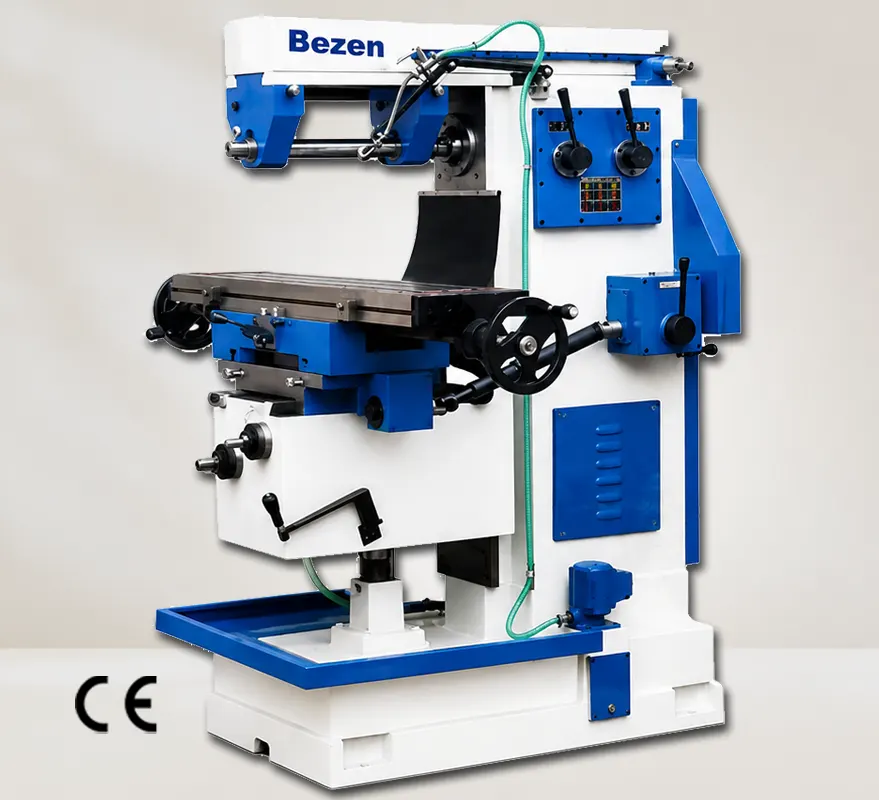

Universal Milling Machines (Gear Head)
Technical Specifications For Universal Milling Machines (Gear Head)
Model | NO. 1U | NO. 1.5 U | NO. 2U | NO. 1.5 V | NO. 2 V |
Table Length & Width | 1060 x 240 | 1140 x 255 | 1270 x 300 | 1140 x 255 | 1270 x 300 |
No. of T-Slots/ Size | 3 x 16 | 3 x 16 | 3 x 16 | 3 x 16 | 3 x 16 |
Swivel | + 45o | + 45o | + 45o | + 45o | + 45o |
Travel X Y Z | 550x170x340 | 600x230x410 | 700x255x455 | 600x230x410 | 700x255x455 |
SPINDLE SPEEDS | 9 | 9 | 9 | 9 | 9 |
Range of Spindle Speeds | 58-768 | 58-768 | 63-727 | 58-768 | 63-727 |
Spindle Taper | ISO – 40 | ISO – 40 | ISO – 40 | ISO – 40 | ISO – 40 |
Arbor Diameter | 25.4 | 25.4 | 25.4 | – | – |
Qull Movement | – | – | – | 80 | 100 |
Feed Horizontal | 3 | 3 | 3 | 3 | 3 |
ELECTRICALS | |||||
Motor Spindle | 2 H.P. 1440 | 2 H.P. 1440 | 3 H.P. 1440 | 2 H.P. 1440 | 3 H.P. 1440 |
Coolant Pump Motor | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. |
SHIPPING DIMENSIONS | |||||
LengthxWidthxHeight cms | 132x117x170 | 140x125x195 | 173x137x220 | 140×125210 | 173x137x270 |
Net Weight | 1050 | 1350 | 2000 | 1400 | 2100 |
Gross Weight Kgs. | 1300 | 1600 | 2500 | 1650 | 2600 |
