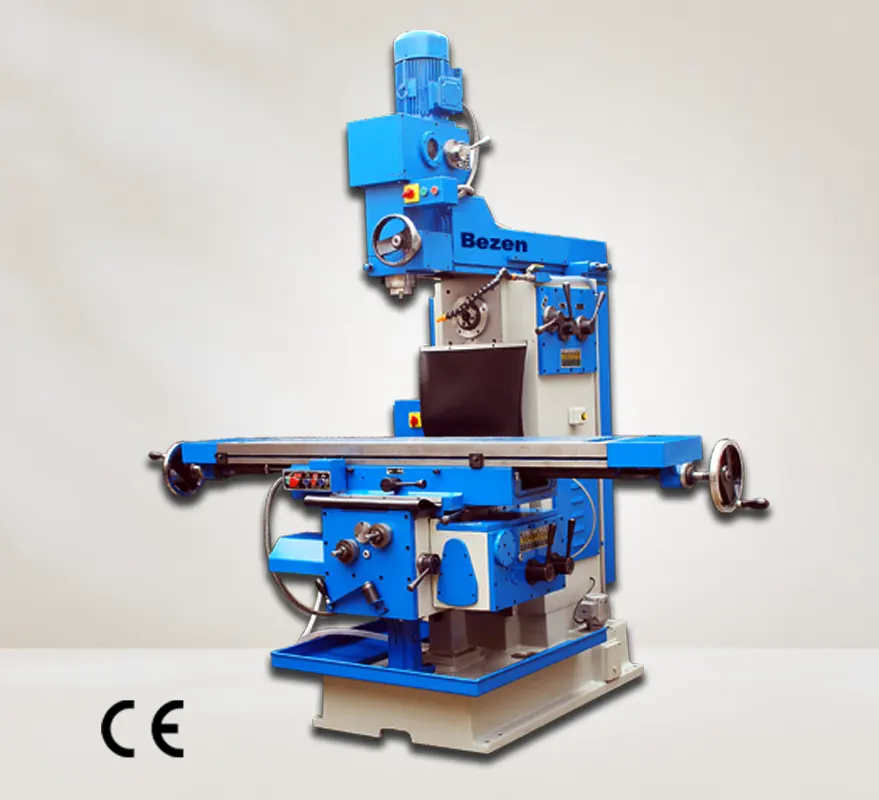

Double Spindel H

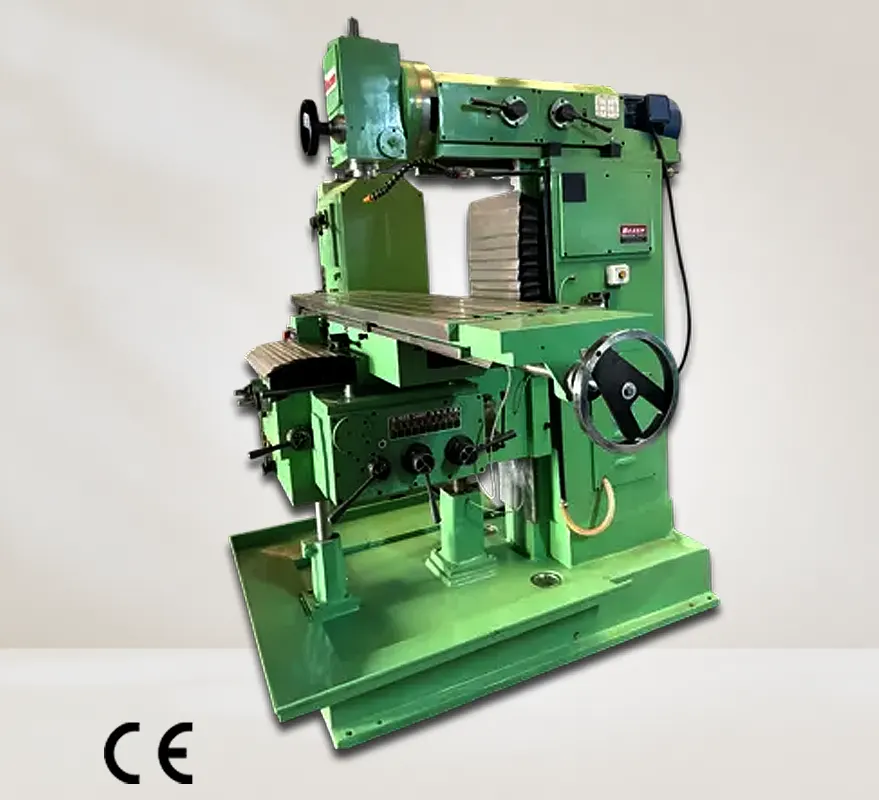

Double Spindel V Milling Machine

Back to Products

Double Spindel H & V. Milling. Machine

Vertical milling machine are the most common milling machines where cutting tool is used in a vertical orientation. The milling tool presses against the stationary metal piece and removes the material according to your design requirements and gives the desired shape and finish. Bezen Gear Head Vertical Milling Machine is CE certifies and comes with Special Vertical Attachment. Our Vertical Machine under goes vigorous quality test to Ensure to supply best quality Vertical Milling Machine to our customers.
  • Automatic indexing head
  • Precision grinding spindle
  • Coolant flood system
  • Adjustable wheel head
  • Compact footprint
Request Quote
Call Us

Technical Specifications For Double Spindel H & V. Milling. Machine

UNIVERSAL & DOUBLE SPINDEL H & V. MILLING. MACHINE
Model
BZ (RT) 2 U.E
BZ (RT) 3 U.E
BZ (RT) 4 U.E
BZ (RT) 5 U.E
Table
Working Space  (mm)
1300 x 300
1400 x 330
1600 x 350
1900 x 400
No. and width of T Nut
3.16
3.18 T NUT
3.18 T NUT
3.18 T NUT
Centre distance between T Slots
70
80
85
90
Longitudinal Traverse by Power X  (mm)
700
800
1000
1200
Cross Traverse by Power Y  (mm)
215
260
340
380
Vertical Traverse by Power Z  (mm)
450
510
600
650
FEEDS
No. of Feeds
18
18
18
18
Range of Longitude Feed/ (mm)
23-420
23-420
23-420
23-420
Range of Cross Feed/ (mm)
23-420
23-420
23-420
23-420
Range of Vertical Feed/ (mm)
3-70
3-70
3-70
3-70
No. of Rapid X Y Z
1
1
1
1
Rapid Long & Cross/ (mm)
1050
1050
1050
1050
Rapid Vertical/ (mm)
175
175
175
175
MILLING SPINDLE
No. of Spindle Speeds
12
12
12
12
Speed Range
40 to 1200 RPM
40 to 1200 RPM
40 to 1200 RPM
40 to 1200 RPM
Spindle Nose
ISO – 40
ISO – 40
ISO – 40
ISO – 50
Arbor Diameter (mm)
25.4mm
25.4mm
32mm
40mm
VARTICAL HEAD
Spindle Nose
ISO 40
ISO 40
ISO 40
ISO 40
Quill Traverse (mm)
127
127
127
127
No. of Speeds
8
8
8
8
Speed Range RPM
60 to 2250
60 to 2250
60 to 2250
60 to 2250
Ram Traverse Mannual
500
550
600
650
Swivel of Head
90o
90o
90o
90o
POWER
Main Motor
3 H.P
5 H.P
7.5 H.P
10 H.P
Feed Motor
2 H.P
2 H.P
3 H.P
3 H.P
Vartical Spindle Motor
2 H.P
3 H.P
3 H.P
3 H.P
Coolant Motor
0.1 H.P.
0.1 H.P.
0.1 H.P.
0.1 H.P.
SHIPPING DIMENSIONS
Length x Width x Height (cm)
173 x 137 x 200
182 x 160 x 218
198 x 168 x 234
210 x 180 x 255
Net Weight Kgs.
2200
3200
3700
4500
Gross Weight K.gs.(Approx)
2600
3700
4300
5000
