Heavy Duty Gantry

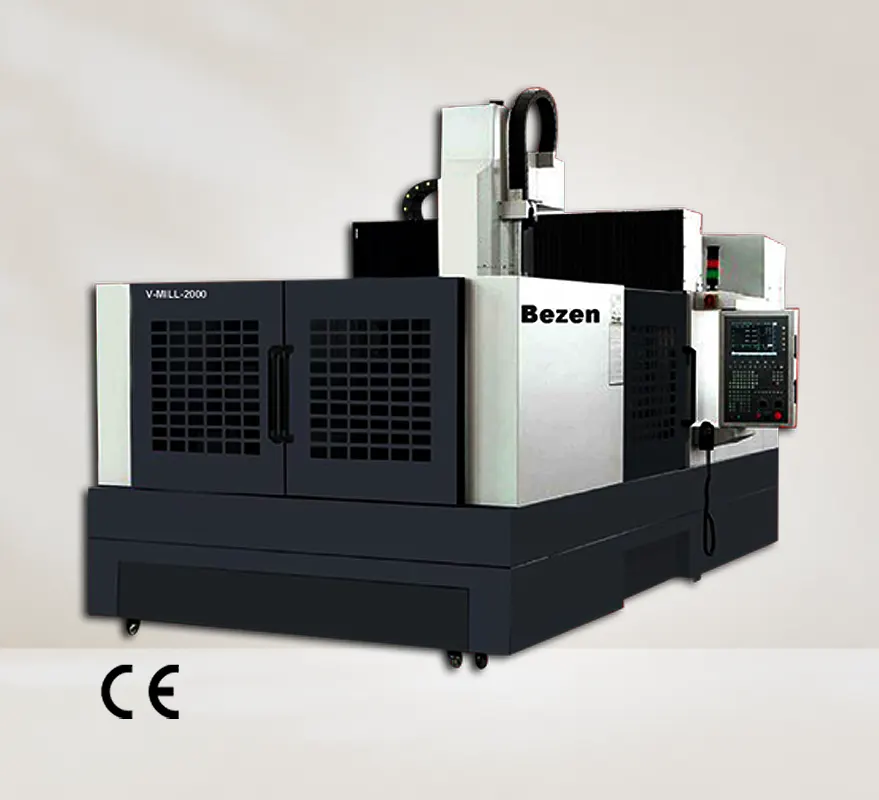

CNC Gantry Type Milling Machine

CNC Gantry milling drilling machining center designed for large workpieces, molds & heavy structural components with a robust bridge structure.
  • Bridge gantry construction
  • Large working envelope
  • Automatic tool changer (option)
  • Heavy chip removal
  • 3/4/5 axis configurations
Request Quote
Call Us

Technical Specifications For CNC Gantry Type Milling Machine

PARTICULARS/MODELS TABLEV-MILL-2000
Table Size2100x1000mmm
T-Slot (Number X Width X Distance)5x22mm
Maximum Table Load1500Kg
Distance from Spindle Nose to Table Surface150-650mm
TRAVERSE
X/Y/Z – Axis Travel2000/1000/500mm
GUIDEWAYS TYPS
X-AxisLinear Way
Y-AxisLinear Way
Z-AxisBox Way
FEED RATE
X/Y/Z -Axis Feed Rate4000mm/min
RAPID TRAVERSE
X/Y/Z -Axis Rapid Traverse12/12/8mm/min
TORQUE
X/Y/Z – Axis Servo Motor Torque30/12/12Nm
SPINDLE
Spindle TaperBT-40
Spindle Speed Range60-8000rpm
Spindle motor Power7.5/11kW
ACCURACY & CONTROLLER
Positioning0.020mm
Repeatability0.015mm
ControllerSIEMENS 828D
ATC
Number of Tools Station16ATC
Type of Tool StationUmbrella
Tool of Adaptor StationBT40
Maximum Tool Weight7kg.
Maximum Tool Diameter/ lengthØ78/100mm
Tool Changing Time (T-T)7.0 Sec.
AIR & POWER REQUIRMENT
Air Pressure Requirment0.6 Mpa
Power Stabilizer Requirement40kVA
DIMENSION & WEIGHT
Overall Dimension (LxWxX H)5230x2550x2600mm
Net Weight11500Kg
