All Geared Heavy Duty
Universal Milling Machine

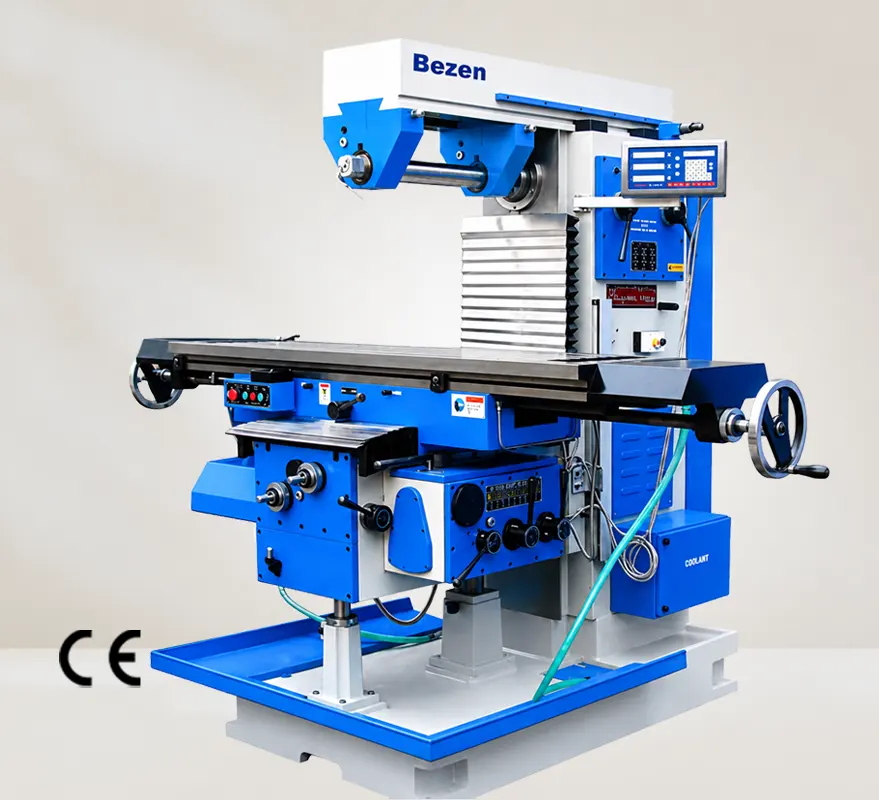

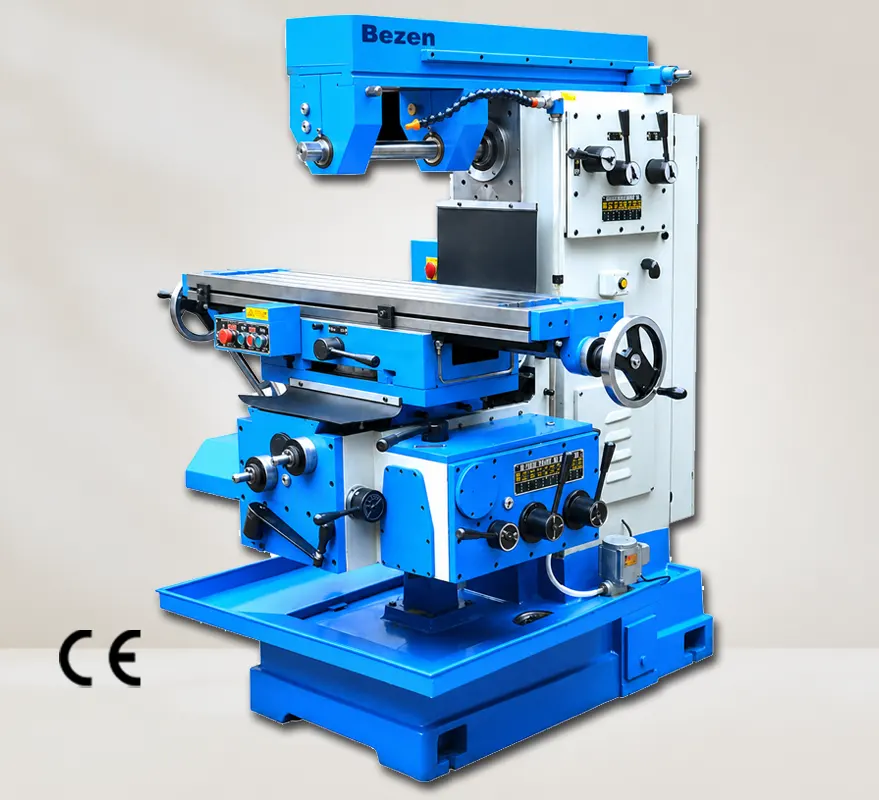

Bezen All Geared Universal Milling Machines are built with rugged cast iron structures, hardened & ground gears, and precise dividing head for multi-directional milling operations. Suitable for tool rooms, production lines, and heavy fabrication.
- All-geared drive with 12+ spindle speeds
- Hardened & ground gears
- Universal swiveling table (±45°)
- Heavy cast iron column & knee
- Dividing head compatible
- CE certified build quality
Technical Specifications For Universal Milling Machine (All Geared)
|
Model |
MAC2 U (AFR)E |
MAC3 U(AFR)E |
MAC4 U(AFR)E |
MAC5 U(AFR)E |
MAC6 U(AFR)E |
MAC7 U(AFR)E |
| TABLE | ||||||
|
Working Space |
1300 x 300 |
1400 x 330 |
1600 x 350 |
1800 x 400 |
2000 x 450 |
2300 X 500 |
|
T.Slot Nos/ Size |
3.16 |
3.20 T NUT |
3.20 T NUT |
3.20 T NUT |
3.20 T NUT |
5.22 T NUT |
|
T.Slot Centre |
70 |
80 |
85 |
90 |
95 |
95 |
|
Swivel |
+ 45o |
+ 45o |
+ 45o |
+ 45o |
+ 45o |
|
|
Longitudinal Travel By Power X |
700mm |
800mm |
1000mm |
1200mm |
1300mm |
1400mm |
|
Cross Travel By Power Y |
215 |
260 |
340 |
380 |
450 |
500mm |
|
Vertical Travel By Power Z |
400 |
460 |
550 |
600 |
650 |
700mm |
| FEEDS | ||||||
|
No. of Feeds |
18 |
18 |
18 |
18 |
18 |
18 |
|
Range of Longitude Feed/Min |
23-420 |
23-420 |
23-420 |
23-420 |
23-420 |
23-420 |
|
Range of Cross Feed/ Min. |
23-420 |
23-420 |
23-420 |
23-420 |
23-420 |
23-420 |
|
Range of Vertical Feed/ Min. |
3-70 |
3-70 |
3-70 |
3-70 |
3-70 |
3-70 |
|
No. of Rapid Feed |
1 |
1 |
1 |
1 |
1 |
1 |
|
Rapid Long & Cross/ Min. |
1050 |
1050 |
1050 |
1050 |
1050 |
1050 |
|
Rapid Vertical/ Min. |
175 |
175 |
175 |
175 |
175 |
175 |
| SPINDLE | ||||||
|
No. of Spindle Speeds. |
12 |
12 |
12 |
12 |
12 |
12 |
|
Range of Spindle Speeds |
40 to 1200 RPM |
40 to 1200 RPM |
40 to 1200 RPM |
40 to 1200 RPM |
40 to 1200 RPM |
40 to 1200 RPM |
|
Spindle Taper |
ISO – 40 |
ISO – 40 |
ISO – 40 |
ISO – 50 |
ISO – 50 |
ISO – 50 |
|
Arbor Diameter |
25.4 |
25.4 |
32 |
40 |
40 |
40mm |
| POWER | ||||||
|
Main Motor |
3 H.P |
5 H.P |
7.5 H.P |
10 H.P |
10 H.P. |
15 H.P |
|
Feed Motor |
2 H.P |
2 H.P |
3 H.P |
3 H.P |
5 H.P. |
5 H.P |
|
Coolant Motor |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
0.1 H.P |
| SHIPPING DIMENSIONS | ||||||
|
Length x Width x Height (in cms.) |
173 x 137 x 200 |
182 x 160 x 218 |
198 x 168 x 234 |
210 x 180 x 255 |
230 x 200 x 275 |
320 X 250 X 320 |
|
Net Weight K.gs. |
2200 |
3200 |
3700 |
4500 |
5500 |
7000KGS |
|
Gross Weight K.gs. |
2600 |
3700 |
4300 |
5000 |
6300 |
8300KGS |
